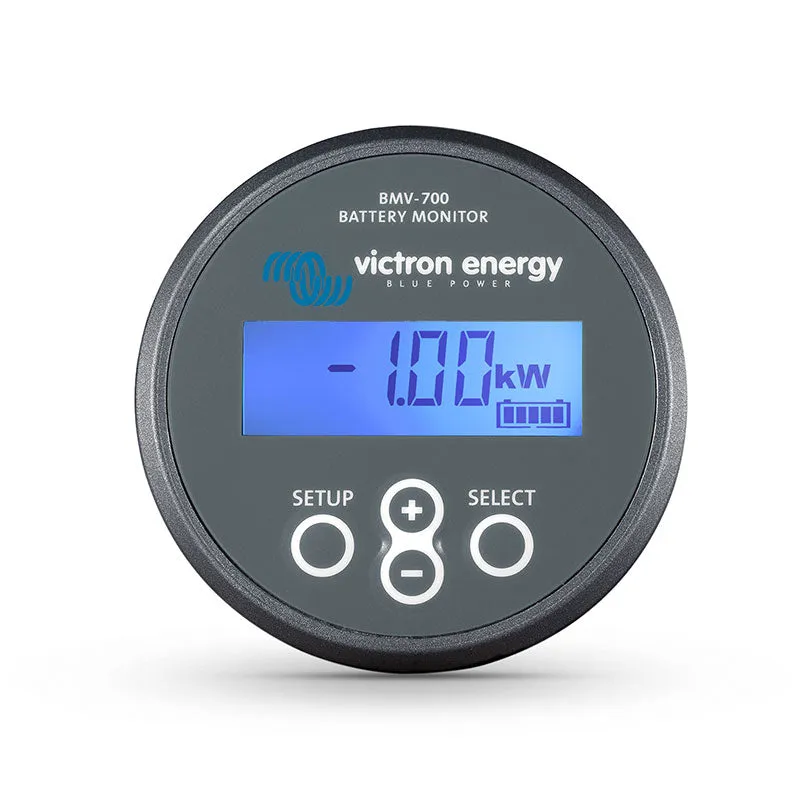

Product Details
＋
Standard Features
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Time to go at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non-critical loads or to run a generator when needed

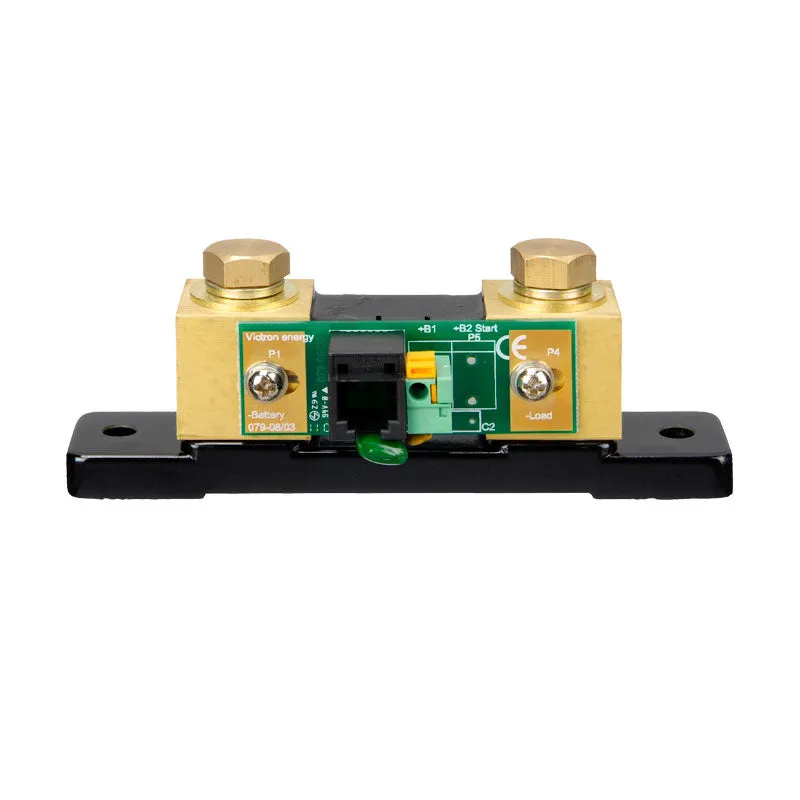

- 500 Amp quick connect shunt and connection kit
- Shunt selection capability up to 10,000 Amps
- VE.Direct communication port
- Stores a wide range of historical events , which can be used to evaluate usage patterns and battery health
- Wide input voltage range: 6.5 - 95 VDC (BMV700, 702)
- High input voltage range: 60 - 385 VDC (BMV700H)
- Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings (BMV702)Also included is a separate front bezel for a square or round display appearance; a securing ring for the rear mounting and screws for the front mounting.
- Cables included: RJ 12 cable (10 m ) and battery cable with fuse (2m)
- 5 year warranty
Variables Monitored
- Battery voltage (V)
- Battery charge/discharge current (A)
- Ampere-hours consumed (Ah)
- State of charge (%)
- Time remaining before complete discharge
- Visual and audible alarm: 'over voltage,' 'under voltage,' and/or 'battery discharged.'
- Programmable alarm or generator start relay
| Battery Monitorcomparison | BMV-700 |
BMV-702 (Gray)
|
BMV-702 (Black)
|
BMV-700H
|
| Part Number | VIC-BAM010700000 | VIC-BAM010702000 | VIC-BAM010702200R | VIC-BAM010700100 |
| Supply Voltage Range | 6.5 - 95 VDC | 6.5 - 95 VDC | 6.5 - 95 VDC | 60 - 385 VDC |
| Current Draw, back light off | < 4mA | < 4mA | < 4mA | < 4mA |
| Input Voltage range, auxiliary battery | NA | 6.5 - 95 VDC | 6.5 - 95 VDC | NA |
| Battery Capacity (Ah) | 20 - 9999 Ah | 20 - 9999 Ah | 20 - 9999 Ah | 20 - 9999 Ah |
| Operating Temperature Range | -20 50°C (0 - 120° F) | -20 50°C (0 - 120° F) | -20 50°C (0 - 120° F) | -20 50°C (0 - 120° F) |
| Measures Voltage of 2nd battery, or temperature, or midpoint | NO | YES | YES | NO |
| Temperature Measurement Range | -20 50°C (0 - 120° F) | -20 50°C (0 - 120° F) | -20 50°C (0 - 120° F) | NA |
| VE.Direct communication port | YES | YES | YES | YES |
| Relay | 60V/1A normally open (function can be inverted) | 60V/1A normally open (function can be inverted) | 60V/1A normally open (function can be inverted) | 60V/1A normally open (function can be inverted) |
