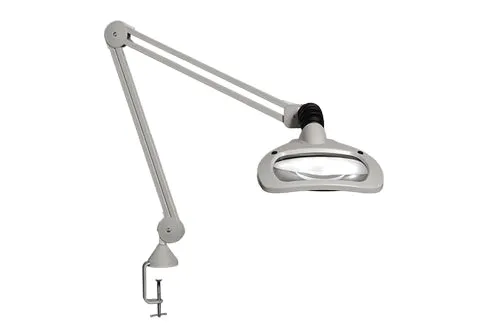

The Luxo Wave LED is a magnifier for industrial applications. Wave LED offers shadow-free magnification with light coming from both sides, as well as three-dimensional magnification with light coming from the left or right. The 3D-feature is especially welcome when working with circuit boards and similar delicate objects.
No knobs to tighten, nothing to adjust. The self-balancing shade and hands-free neck assembly make exact positioning easy. The spring-balanced arm provides maximum vertical and horizontal movement, and will always stay in the right position without drifting.
This WAVE LED is supplied with a 3.5-diopter (1.88X) white crown optical-quality glass lens. A cloth shade cover is provided to protect the lens from unwanted dust and debris.
LED: Lightsource of the future:
Wave LED is equipped with two 6W LED modules, which are individually controllable. A 9 or 4 hour automatic shut-off feature and step dimming (0-50-100%) further ensure energy savings.
ESD-Safe models designed for use in static-sensitive environments are available. UV models designed for the inspection of conformal coatings are also available.
|
Lightsource |
Two 6W dimmable LED modules. 13W total energy consumed. Step dimming: 0-50-100%. 4600 lux at 11" focal length. CCT: 4000°K. CRI: 80. |
|
Body Material and Color |
Steel arm and die-cast aluminum shade. Light Grey. |
|
Mounting |
Standard with edge clamp or optional . Additional mounting options are also available. |
|
Optics |
3.5-diopter (1.88X) 6.75" x 4.5" rectangular white crown optical-quality glass lens. For additional magnification, a secondary 4-, 6- or 10-diopter STAYS lens can be attached to the primary lens. |
|
Power Supply |
Supplied with cable and plug. |
|
Arm Technology and Movement |
Heavy-duty internal-spring 30" parallel, three-pivot K-arm. An integrated auto shut-off will turn the light off after 9 or 4 hours. |
