ARTICLE NUMBER

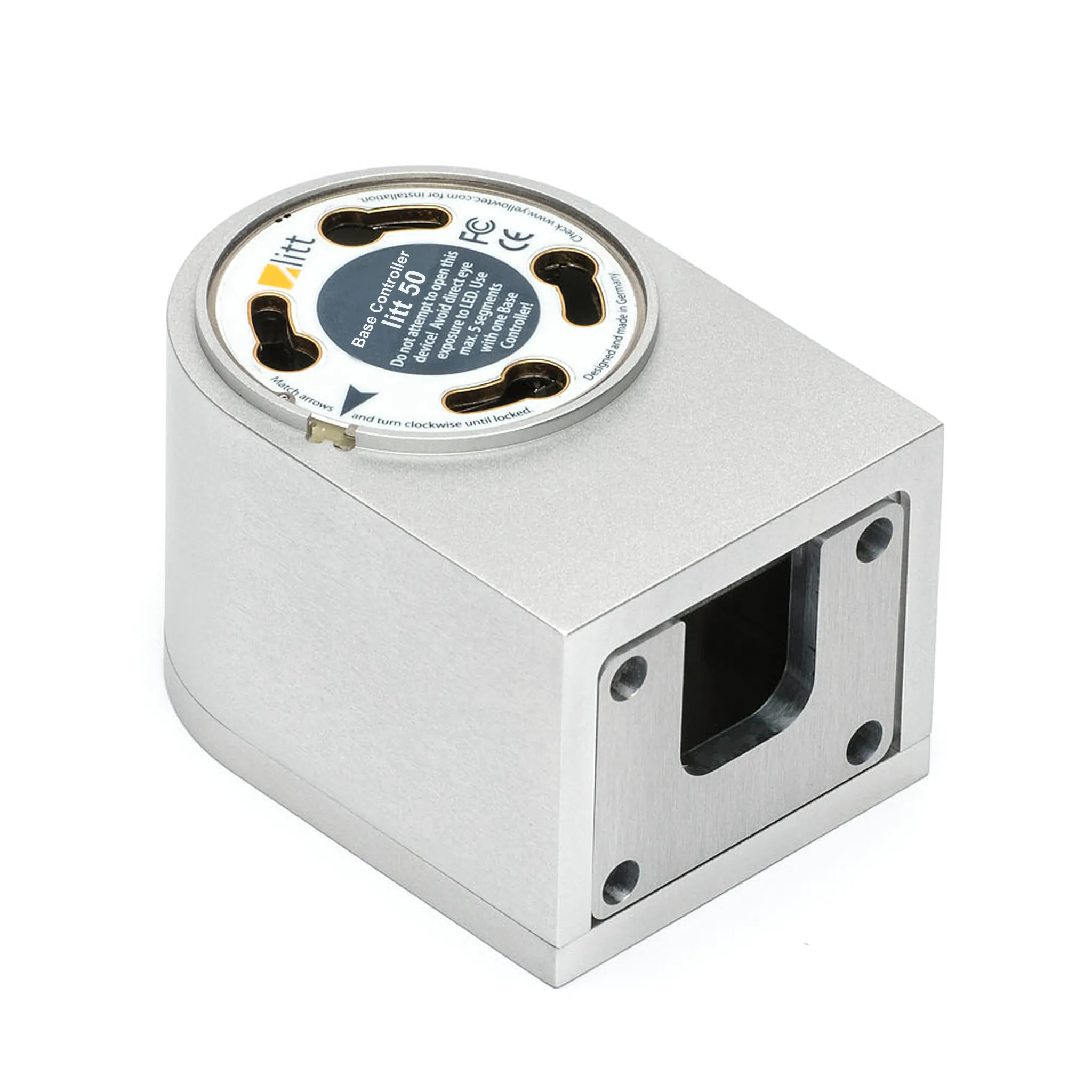

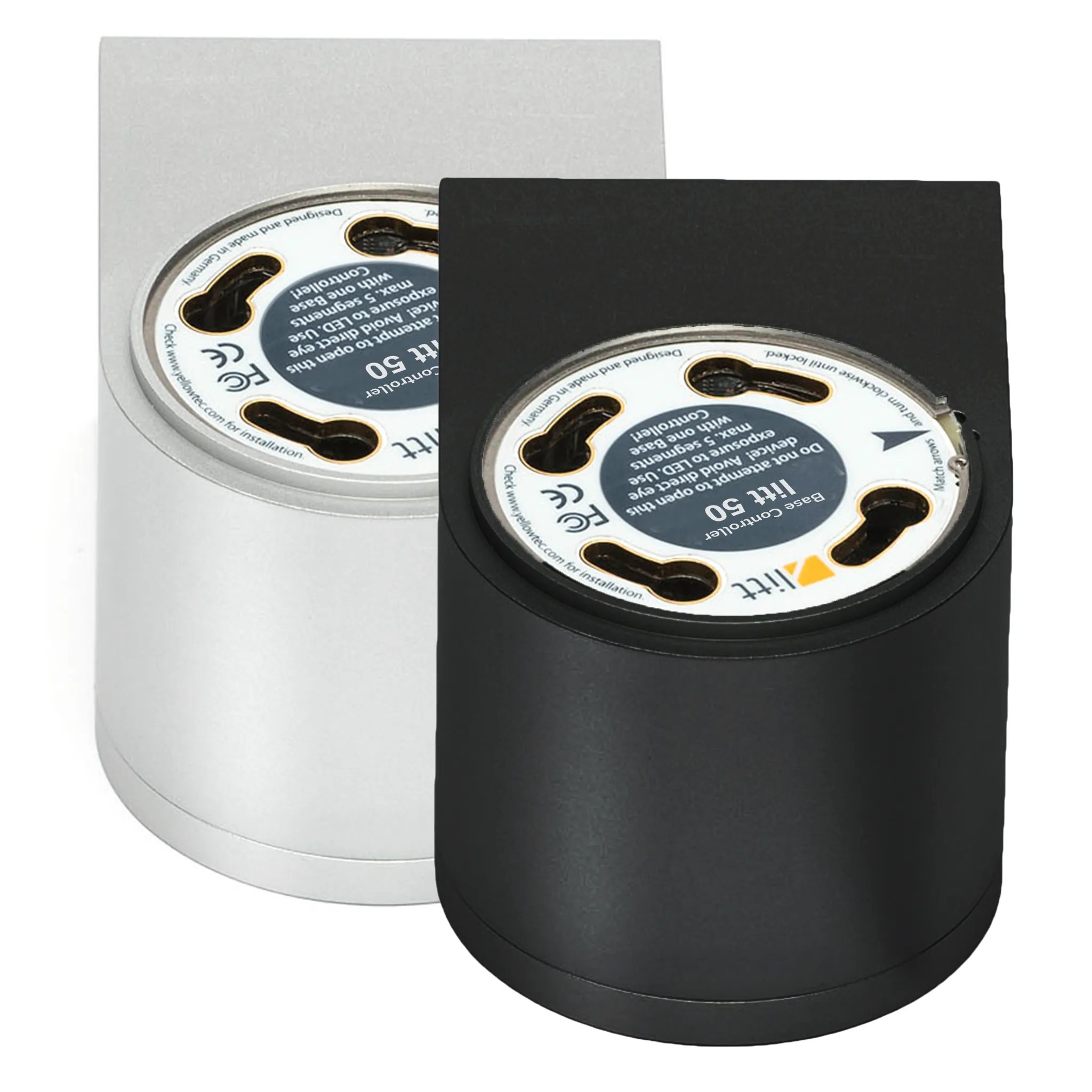

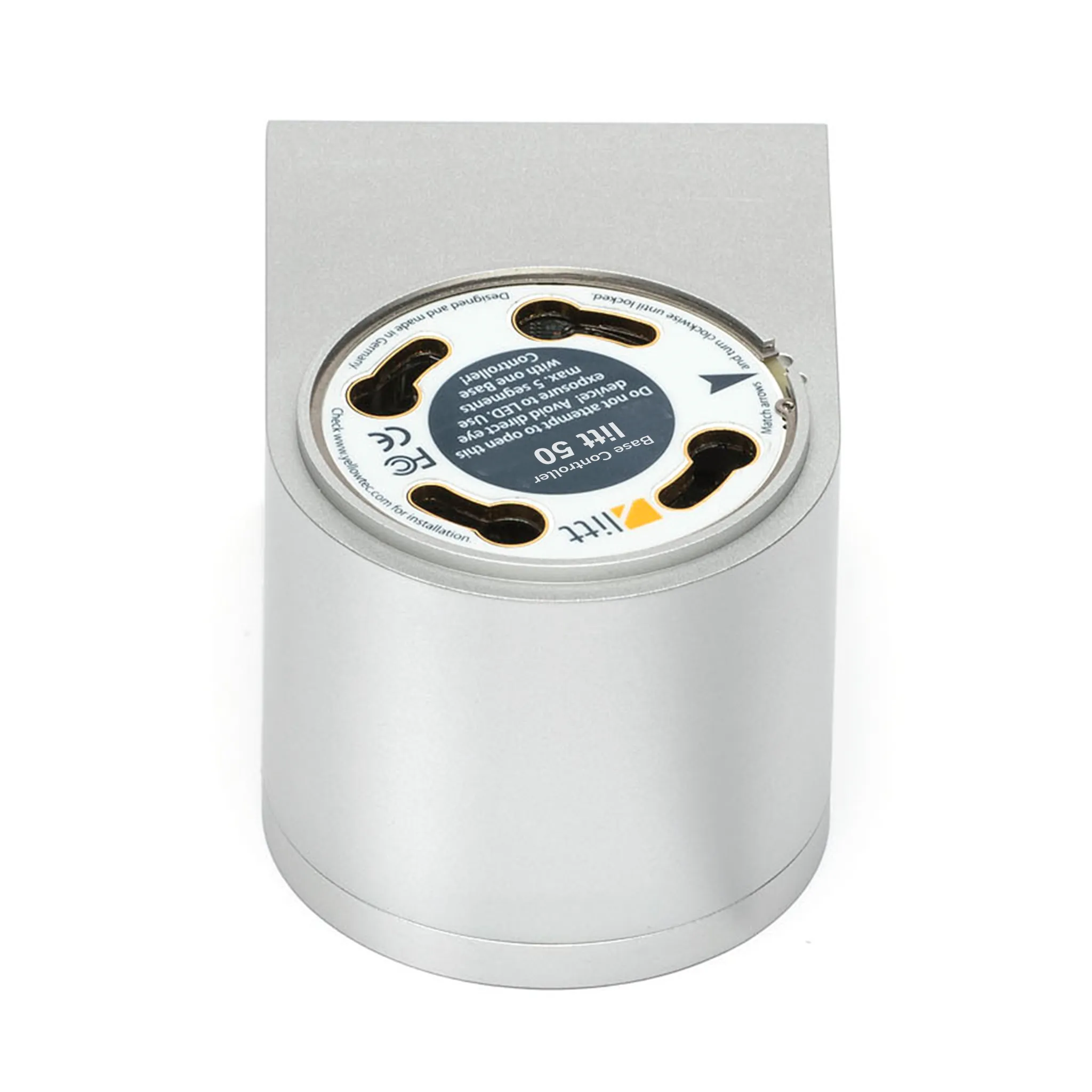

✓ YT9101 litt Base Controller aluminum

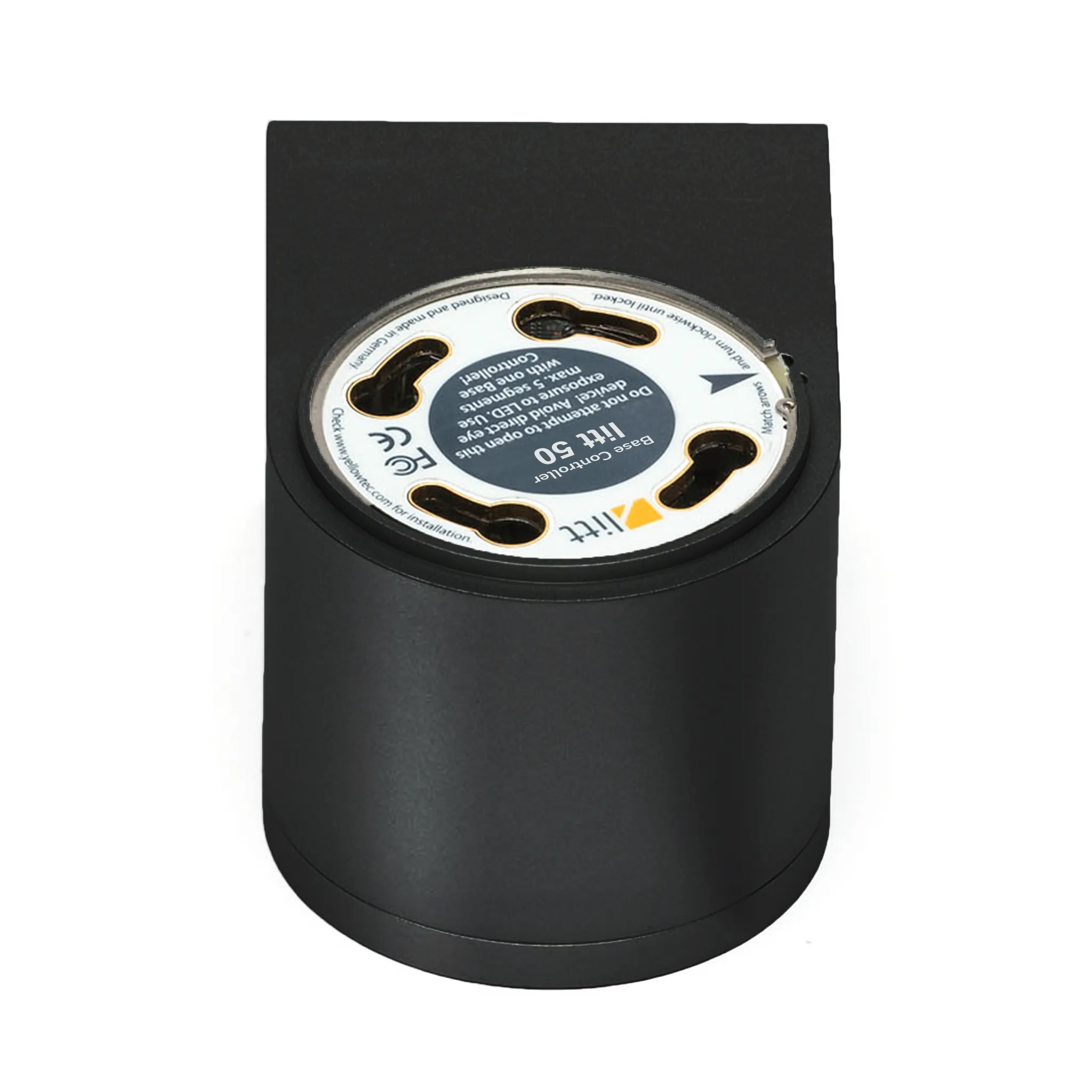

✓ YT9701 litt Base Controller black

SCOPE OF DELIVERY

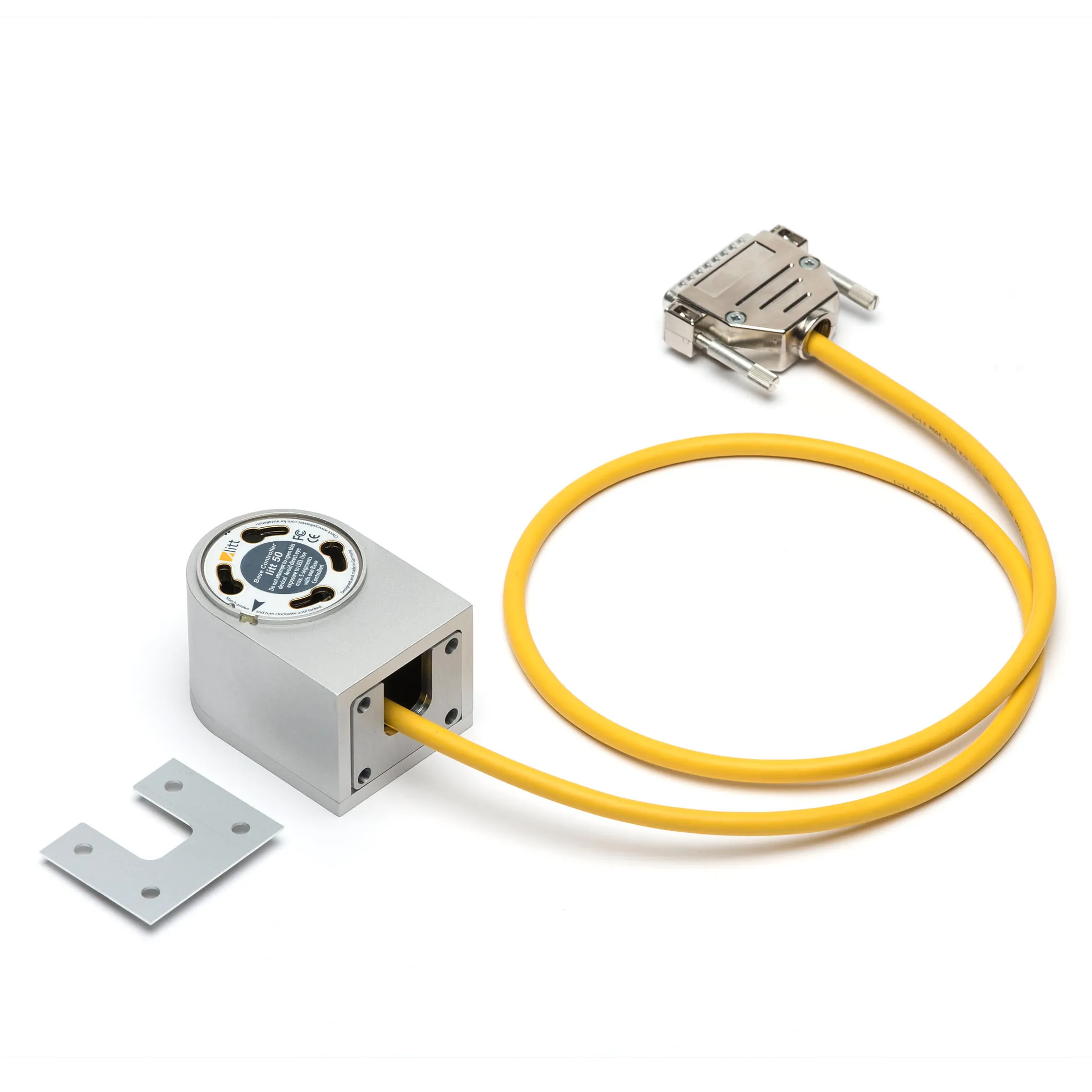

✓  litt Base Controller Wall Mount   ↪
✓  2x rear panels 4x screws dowels for wall mounting
✓  Cover Cap for top segment
✓  litt Lighthouse® Configuration Software

❗

↪ | |

 ↪ | |

DETAILS
 ✓  Fundamental litt base element for wall mounting
 ✓  Includes all mounting parts for wall mounting
 ✓  Connect up to 5x litt Color Segments 1x litt Sound Segment

 ✓  Bus control with automatic recognition of litt Segments

 ✓  8-pin terminal block with control inputs for each color (2.4-24W)

 ✓  Configure litt via mini-USB-port litt Lighthouse® (Windows only)

↪
 ✓  Color: aluminum
 ✓  Dimensions: ø51mm x 45mm  |  Weight: 0.19kg
 ✓  Extraordinarily clean elegant anodized aluminum look
 ✓  All connecting parts are located inside
 ✓  Power supply execution:
      via switch/potential-free contacts/external logic switch
 ✓  Power requirement Base Controller: 0.5W
 ✓  Power supply (permanent): 9V…24V

↪

DESCRIPTION
If you want to mount your litt Signaling Device to a wall, choose a litt Base Controller Wall Mount as the base element. Mix up to five litt Color Segments of different colors and sizes  and place them on your Base Controller Wall Mount in any order. Optionally add a litt Sound Segment on top.

litt's Base Controller is equipped with automatic litt Color Segment recognition, individual control inputs for each color (2.4-24VDC) and reverse polarity protection. Its connection panel consists of an 8-pin terminal block and a mini-USB jack. All the connecting parts are located inside, giving it an extraordinarily elegant look.

↪
