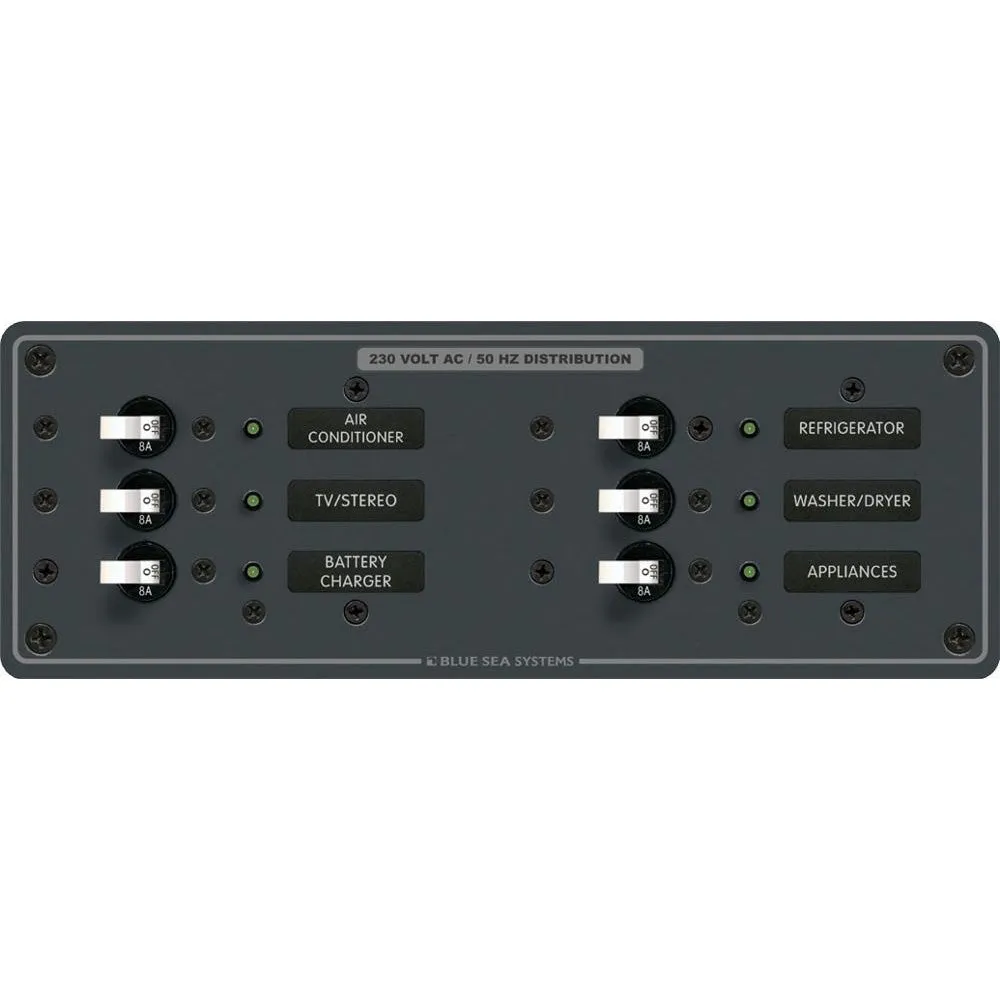

8197 AC 6 Position

Features:

• All hot, neutral, and safety ground buses installed, fully pre-wired


• All circuit label positions are backlit on standard panels - No kit required


• "ON" indicating LEDs installed in all circuit posistions


• Maximum panel amperage - 100 Amperes


• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance


• Two-part polyurethane slate gray finish


• Heavy 1/8" aluminum 5052 alloy


• Industry standard height and width


• Countersunk mounting holes throughout


• Detailed installation instructions and cutout template included

Specifications:

• Positions: 6


• Nominal Voltage: 230v AC


• Maximum Amperage: 100A


• Height: 3.75"


• Width: 10.5"

Included:

• (6) 7299 A-Series White Toggle Circuit Breaker - Single Pole 8A


• (1) 8031 Basic AC Panel Label Set - 30 Labels


• (6) 8134 LED - 230v AC Green

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
