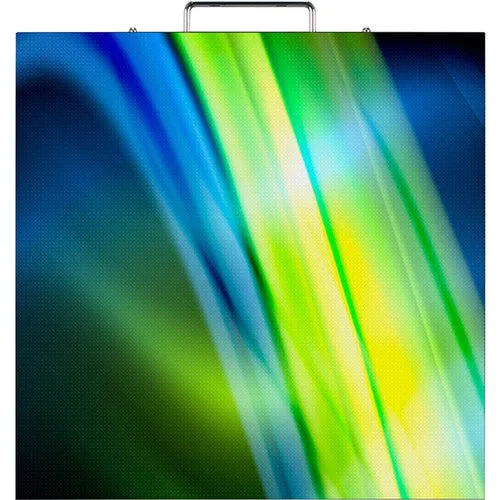

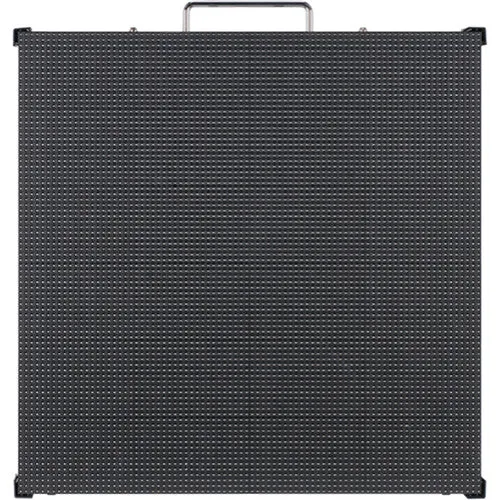

The modular American DJ Vision Series VS3 LED Video Panel is designed for large-scale, high-resolution video production well suited for concerts, special events, clubs, touring, and rental houses. Numerous panels can be fitted together without gaps and can scale up, allowing for the creation of jumbotron-sized panels often seen at arena events. The unit has a pixel pitch of 3.91mm, 3-in-1 RGB SMD2121 LEDs, and a brightness of 1000 cd/m². There are four LED modules, which allows for easy serviceability. The VS3 connections include PowerLock In/Out and DataLock In/Out. Each panel features the NovaStar A5s receiving card built-in. Up to 8 VS3 video panels fit inside the optional VSFC8 flight case. Hang up to 20 VS Series Video Panels vertically with the optional VSRB1 rigging bar.
Note: Only Support Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI via separately sold controller.
- 3.91mm Pixel Pitch
- 3-in-1 RGB SMD2121 LED
- 128 x 128 Pixel Density
- 160/140° Viewing Angles at 9.75'
- 1000 cd/m² Brightness

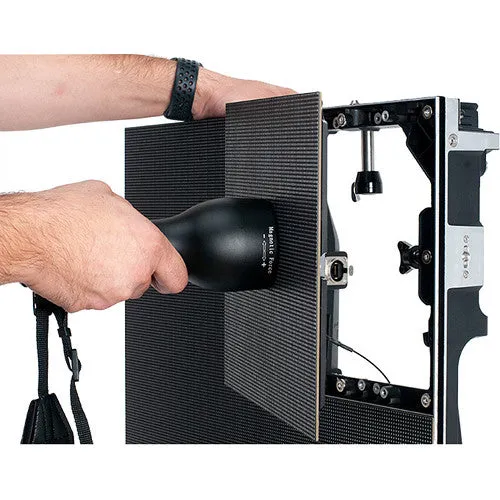

- Four Mini LED Modules per Panel
- 256 Display Colors (14-Bit Processing)

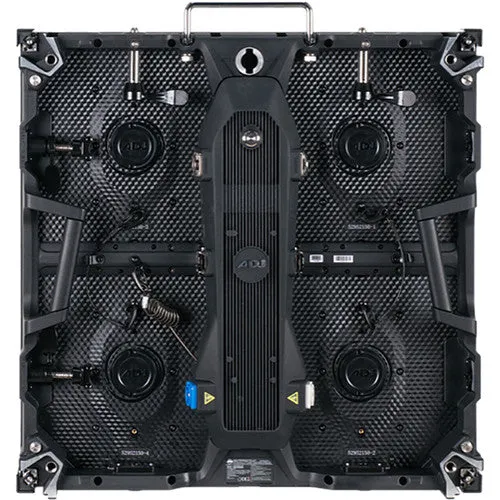

- PowerLock Input & Output
- DataLock Input & Output
- NovaStar A5s Receiving Card
